Sub-30-second digitization
Selected areas are digitized rapidly for routine review workflows.
The Cryosuite workflow combines Cryofixator™, Cryostainer™, official reagents and Hybrid Microscope review to support structured multiplex cytology workflows.
No-obligation enquiry · Typical response within one business day
A streamlined cryoimmunostaining workflow designed for cytopathology laboratories.
Pleural or ascitic fluid and FNA specimens, collected via standard protocols.
Direct-to-slide cryofixation preserves antigen integrity.
Multiplex immunofluorescence staining with the Cryophore™ panel of choice.
Whole-slide multichannel acquisition.
Cytopathologist review.

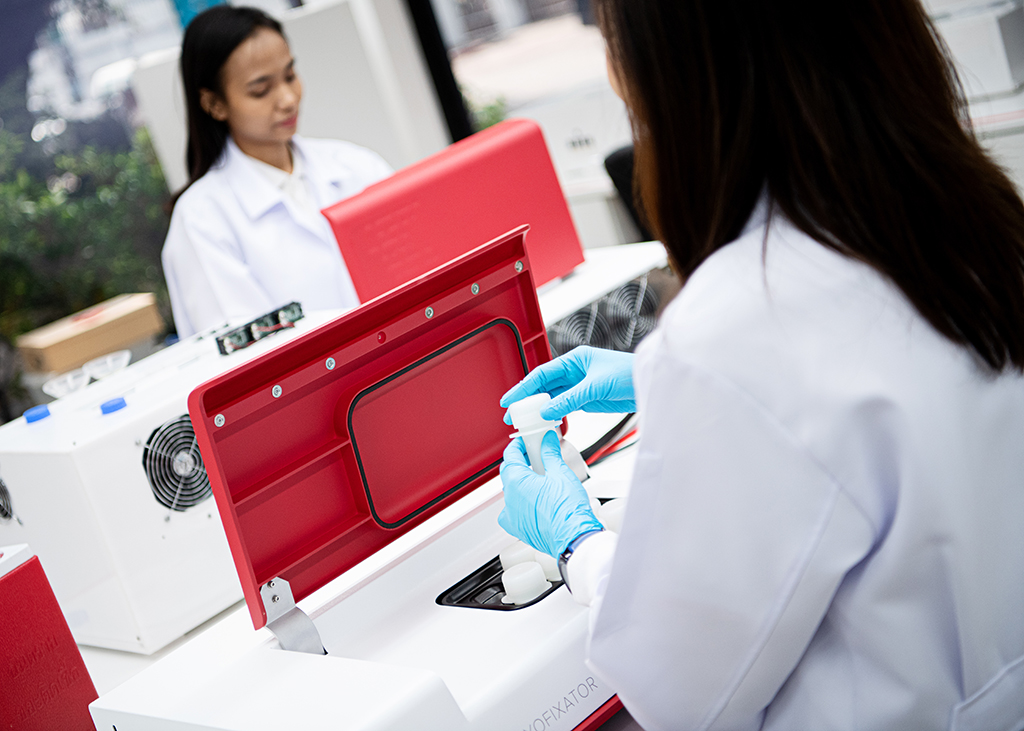

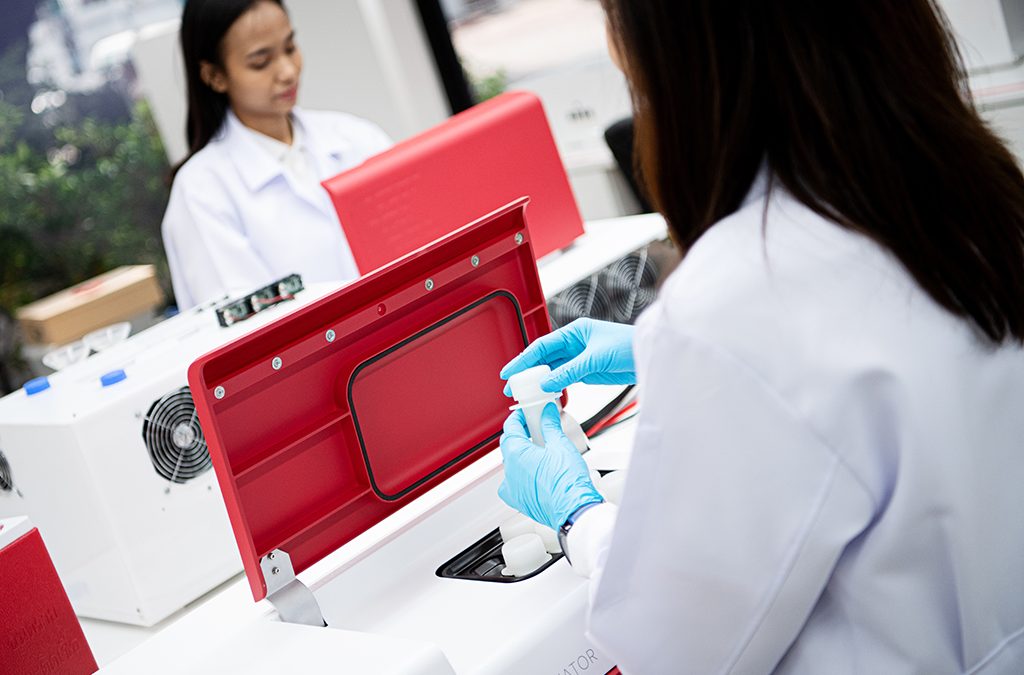

Direct-to-slide cryofixation instrument that preserves epitopes for multiplex immunofluorescence on cytology specimens.
Cryofixator™ replaces multi-hour formalin fixation with rapid cryofixation directly on the cytology slide, preserving cellular architecture and antigen integrity. Designed for effusion and FNA specimens, it enables Cryostainer™ multiplex protocols that traditional FFPE workflows cannot support.
Key features: Direct-to-slide cryofixation · Cytology-specimen optimised · Multiplex-compatible epitope preservation · Benchtop laboratory footprint
Specimen types: Pleural and ascitic effusions, FNA imprints and smears
Format: Benchtop
Weight: Under 18 kg
Slide capacity: Configurable per laboratory
Quality system: Manufactured under ISO 13485
Regulatory status: CE-marked (EU IVDR)
Availability: Available — contact for territory and configuration
Slide-based immunofluorescence staining system for Cryophore™ panels and verified antibodies.
Cryostainer™ is the staining system for cytology specimens previously cryofixed with Cryofixator™. It supports the Cryophore™ multiplex panel range and standardises staining across slides, operators, and laboratories.
Key features: Multiplex immunofluorescence staining · Cryophore™ panel compatibility · Standardised staining workflows · Lot-traceable reagent handling
Intended use: A slide-based immunofluorescence staining system accommodating up to eight antibodies on a single microscope slide with reduced antibody usage.
Workflow: Cryoimmunostaining — multiplex IF
Weight: Under 16 kg
Quality system: Manufactured under ISO 13485
Regulatory status: CE-marked (EU IVDR)
Availability: Available — contact for territory and configuration
The Hybrid Microscope digitizes multiplex cytology in under 30 seconds.
Built on a Zeiss Axio Imager Z2-class platform with X-ZELL software, the Hybrid Microscope displays per-channel and combined views for cytopathology review.
Selected areas are digitized rapidly for routine review workflows.
Per-channel and merged views can be switched on and off during interpretation.
On-screen morphology is equivalent to bright-field IHC.
Channels include CK7, EpCAM, TTF1, CD56, Nucleus, p40, CD45, Calretinin, and a merged view.
Each marker can be reviewed independently to isolate expression patterns.
Markers can be combined in a single view to understand cellular context.
Use contexts include SCLC, prostate, ovarian and reactive WBC assessment.
Our scientific liaison team will walk you through workflow integration, validation, and panel choice.
